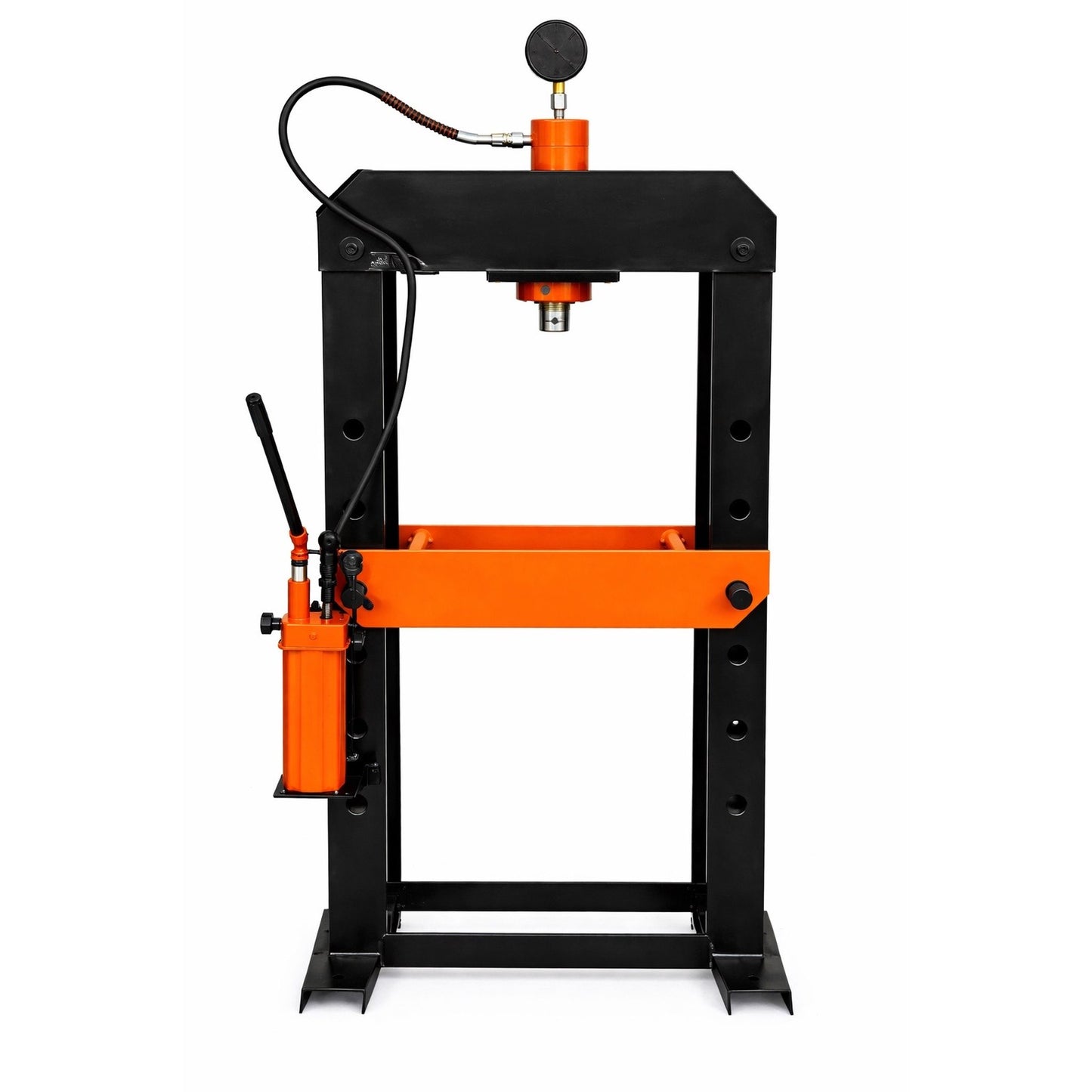

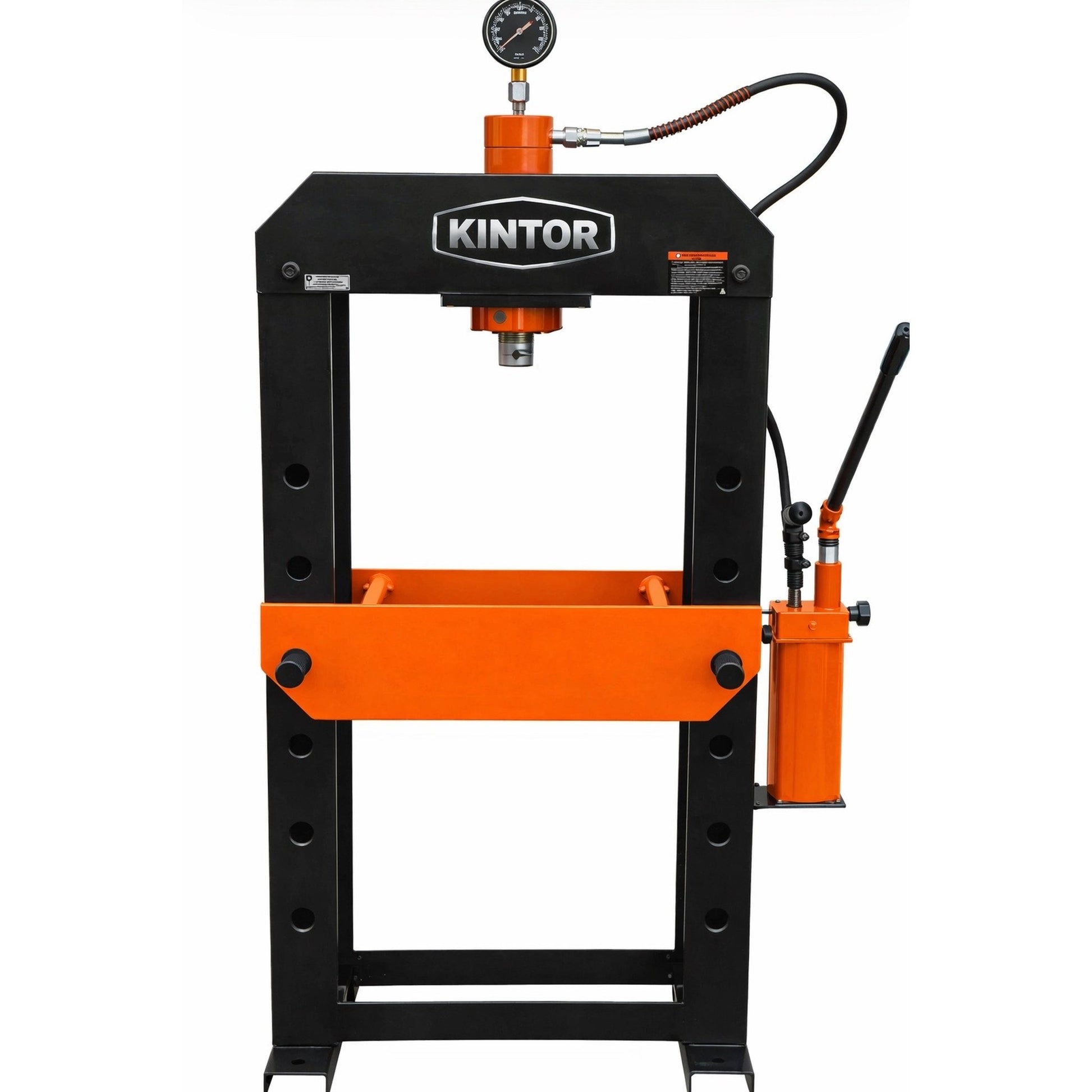

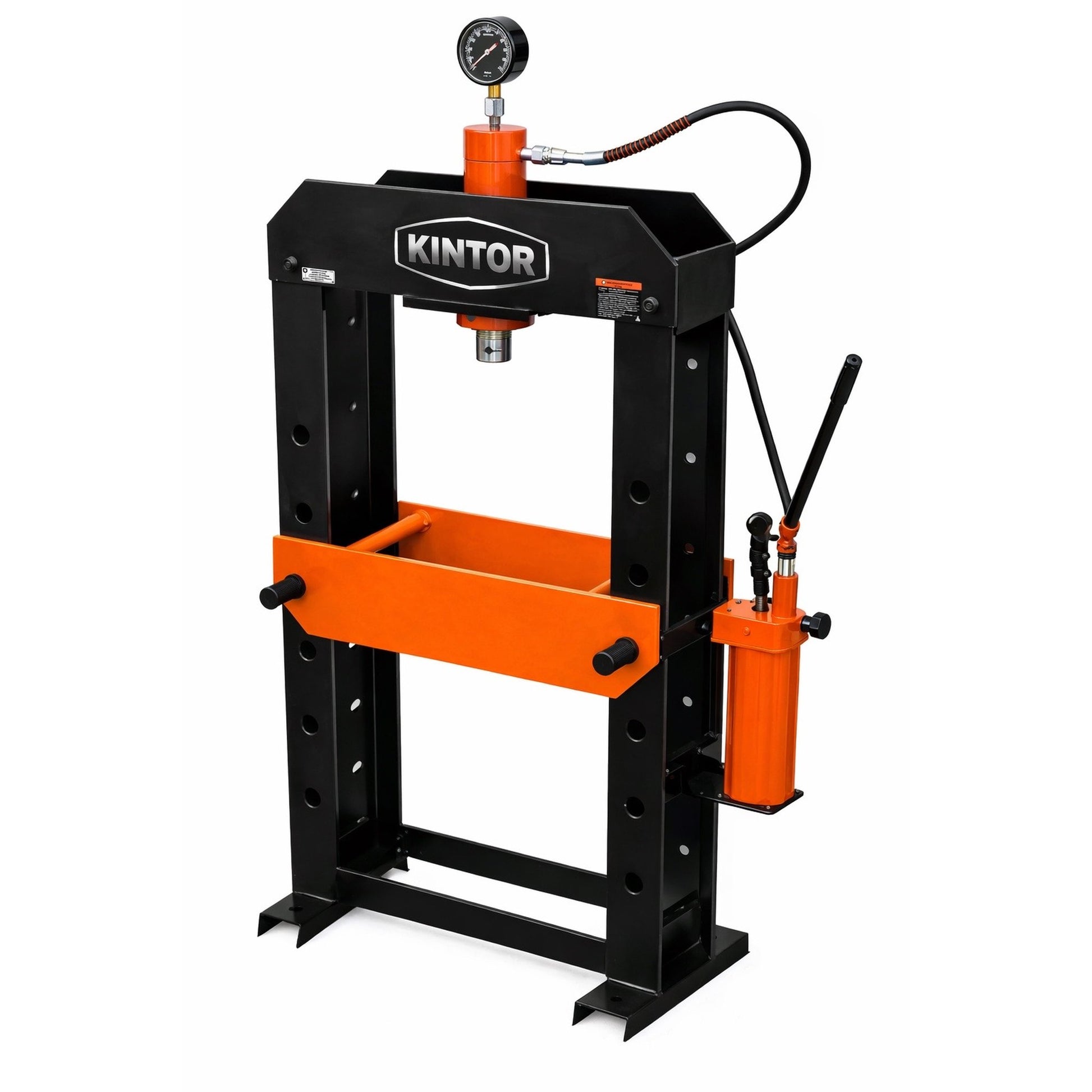

30-Ton Manual Hydraulic Shop Press

Built to Order • Pressure Tested • Crated for safe freight • 1-Year Warranty

Our 30-ton manual hydraulic shop press is a professional-grade machine designed for fabrication, automotive, maintenance, and general shop use. Each press is built to order, pressure tested to rated capacity, and securely crated for shipment prior to delivery.

Typical Uses

This 30-ton manual hydraulic shop press is commonly used for:

• Bearing installation and removal
• Bushing and seal work
• Suspension and drivetrain service
• Pressing U-joints and wheel hubs
• Straightening and forming metal components
• General fabrication and maintenance tasks

Designed for professional automotive, fabrication, and maintenance shops.

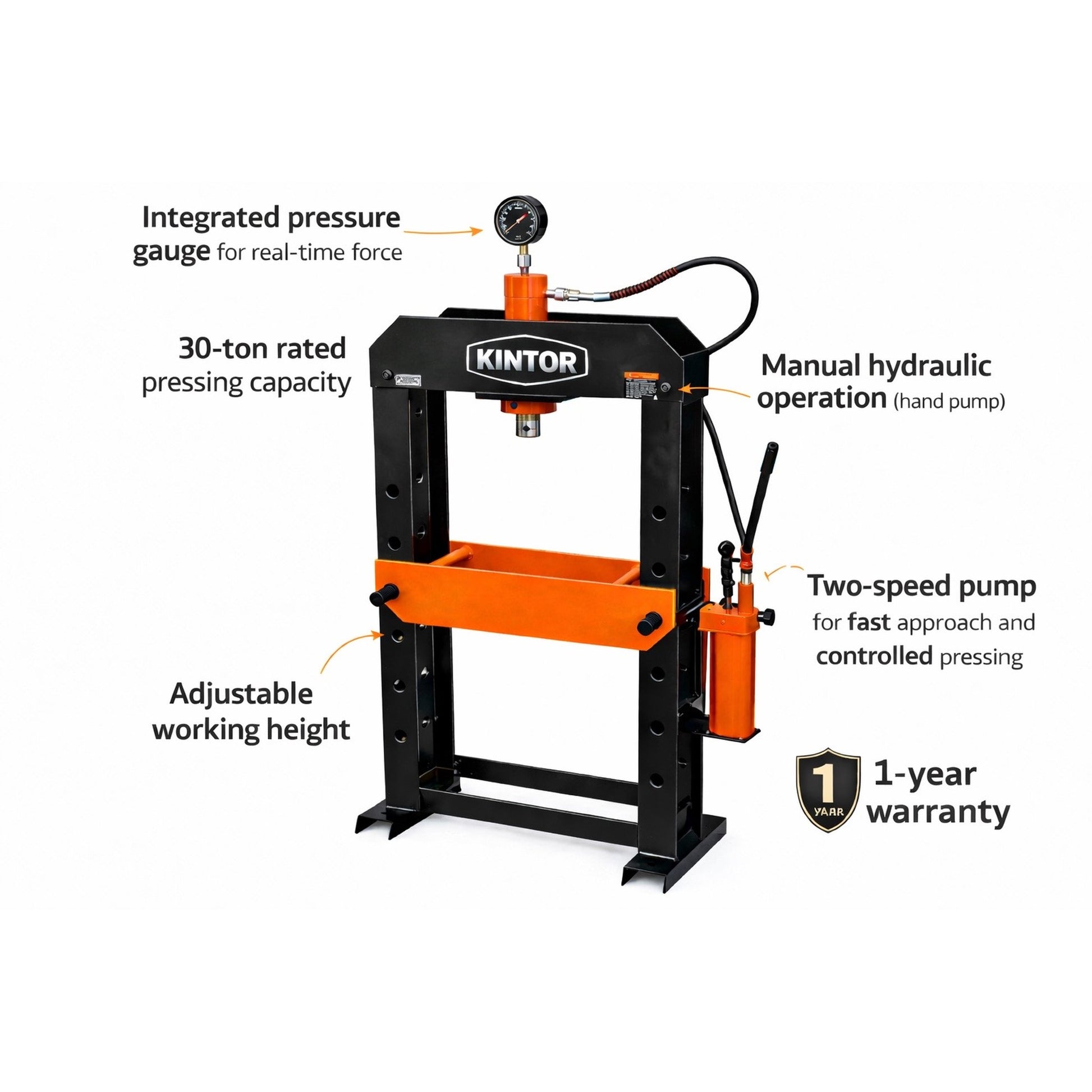

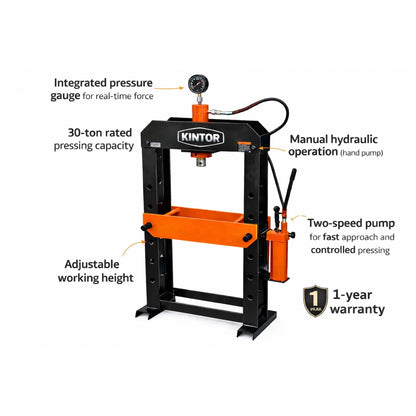

Key Features

• 30-ton rated pressing capacity
• Manual hydraulic operation (hand pump)
• Two-speed pump for fast approach and controlled pressing
• Integrated pressure gauge for real-time force monitoring
• Heavy-duty welded steel frame
• Adjustable working height
• Wooden shipping crate included
• 1-year warranty

Why Manual Hydraulic?

Manual hydraulic presses are trusted by professional shops for their durability, precision, and low maintenance requirements. With no electricity or compressed air needed, this press can be installed and used immediately in virtually any shop environment.

Built to Order & Quality Control

Each press is manufactured specifically for your order and undergoes pressure testing prior to shipment to verify full rated tonnage and proper operation. Machines are inspected and crated only after passing functional and pressure checks.

Technical Specifications

• Press Capacity: 30 Tons
• Operation: Manual Hydraulic
• Ram Stroke: 8 inches
• Maximum Adjustable Working Height: Up to 24 inches
• Minimum Working Range: 2.4"
• Maximum Working Range: ~41"
• Work Table Size: 12" × 16"
• Pressure Gauge: Included
• Power Requirement: None

Dimensions & Weight

• Overall Crated Size: 46" × 22" × 63"
• Net Weight: ~485 lbs
• Crated Shipping Weight: ~550 lbs
• Packaging: Heavy-duty wooden crate

Lead Time & Shipping

• Manufacturing Time: Approximately 30 days
• Shipping Time: Approximately 30 days (freight)
• Estimated Total Lead Time: Approximately 60 days

All machines are shipped securely in wooden crates to ensure safe transport.

Warranty

This press includes a 1-year warranty covering manufacturing defects and hydraulic components. Replacement parts and technical support are available.

Important Notes

• This is a built-to-order industrial machine
• Orders are non-cancelable once production begins
• Freight delivery timelines may vary
• Full technical documentation and pressure test information available upon request

gned for professional automotive, fabrication, and maintenance shops.

Frequently Asked Questions

Do I need electricity or compressed air to operate this press?
No. This is a fully manual hydraulic press and does not require electrical power or compressed air.

Is this press in stock or built to order?
Each press is built to order. Production begins after order confirmation.

What is the estimated delivery time?
Manufacturing typically takes approximately 30 days, followed by approximately 30 days for freight shipping. Total estimated lead time is about 60 days.

How is the press shipped?
The press is shipped in a heavy-duty wooden export crate to ensure safe transport during freight shipment.

Does the press include a pressure gauge?
Yes. An integrated pressure gauge is included for real-time force monitoring during operation.

What warranty is included?
The press includes a 1-year warranty covering manufacturing defects and hydraulic components. Replacement parts and support are available.

How does pricing work?
Pricing is provided by quote only. Final pricing is confirmed after reviewing configuration and delivery location to ensure accurate freight costs.

Are technical drawings or documentation available?
Yes. Full technical specifications and pressure test documentation are available upon request.

Ordering

Place your order directly through this page or contact us for a formal quote and specification confirmation.
